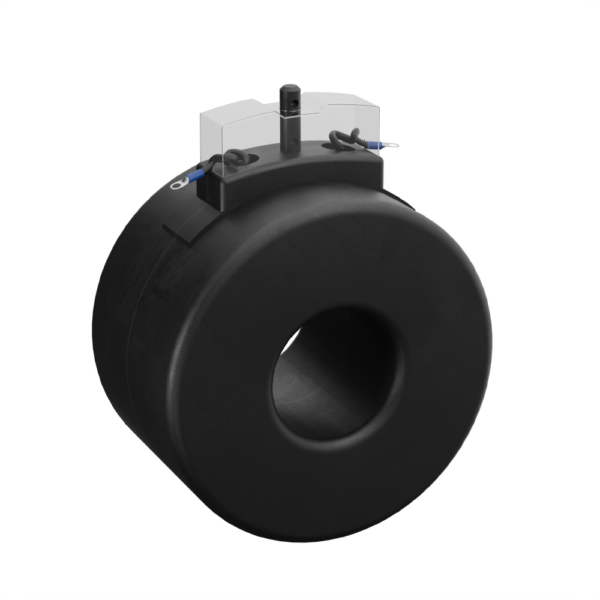

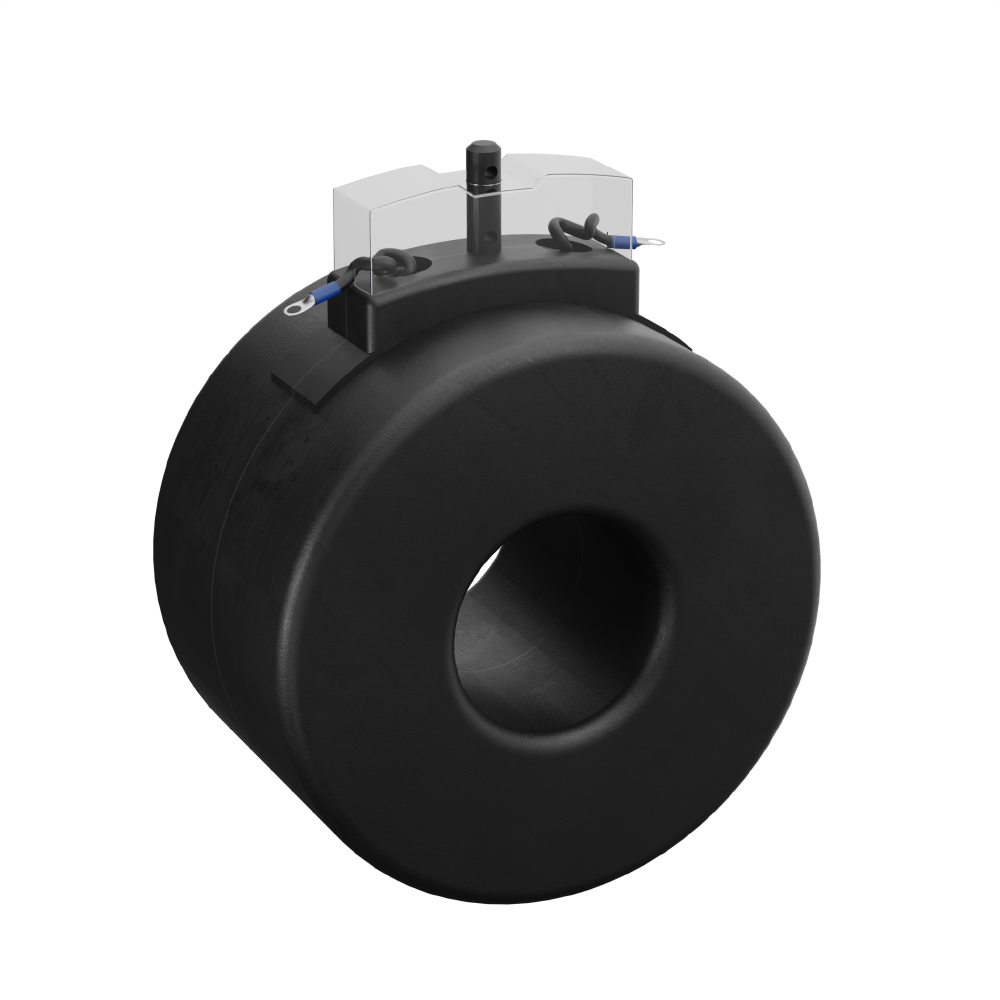

FEATURES
- ABS plastic moulding
- Apertures accepting a wide range of bus bar
- CTs are ultrasonically welded and unbreakable
SPECIFICATION
| Input Specifications | |||
| Rated Primary Current | : | 20A to 400A | |
| Rated Secondary Output | : | 5A/1A (Consult factory) | |
| Technical Specifications | |||
| Rated Burden | : | 1VA, 2.5VA & 5VA (any other on request) | |
| Class of Accuracy | : | 1 and 3 | |
| Thermal Nominal Continuous | : | 1.2 times rated current continuously | |
| Rated Current | : | 2.55x Ith | |
| Thermal Short Circuit Current | : | 60xIn | |
| Insulation Class | : | Class E | |
| Max. Operating Voltage | : | 720V maximum | |
| Insulation Test Voltage | : | 3KV AC for 1 minute | |
| Compliance Standard | : | IEC61869-2 | |
| Environmental Specification | |||
| Operating Temperature | : | 20°C to 70°C | |
| Storage Temperature | : | 0°to 55°C | |
| Humidity | : | <95% RH |
ADVANTAGES
- Easy bus bar mounting
- Highly cost effective
- Compact in size
APPLICATION
| » Switchgear | » Distribution System | ….. |
| » Generator sets | » Control panels | ….. |
| » Control Devices | » Overload Protection | ….. |
